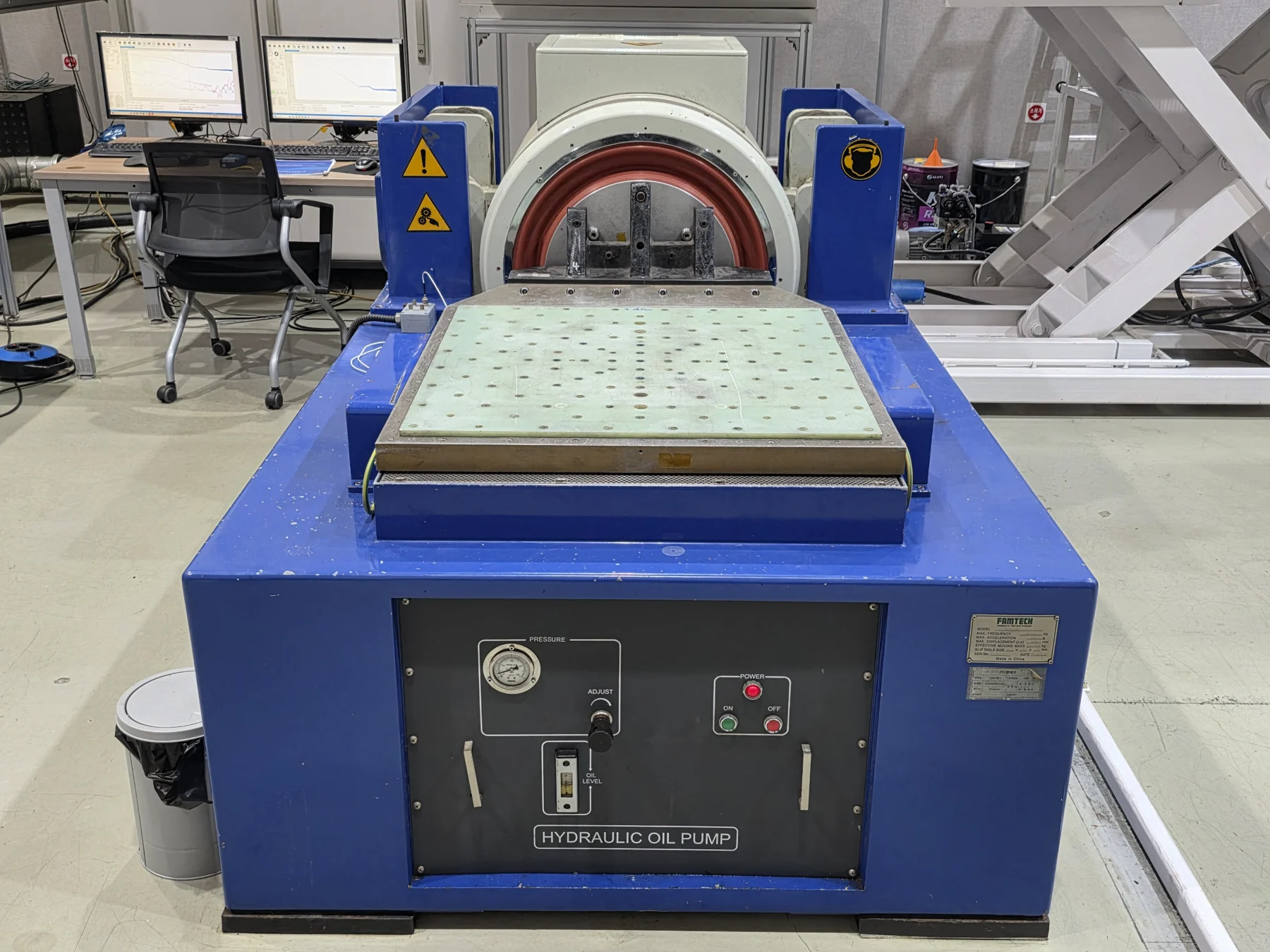

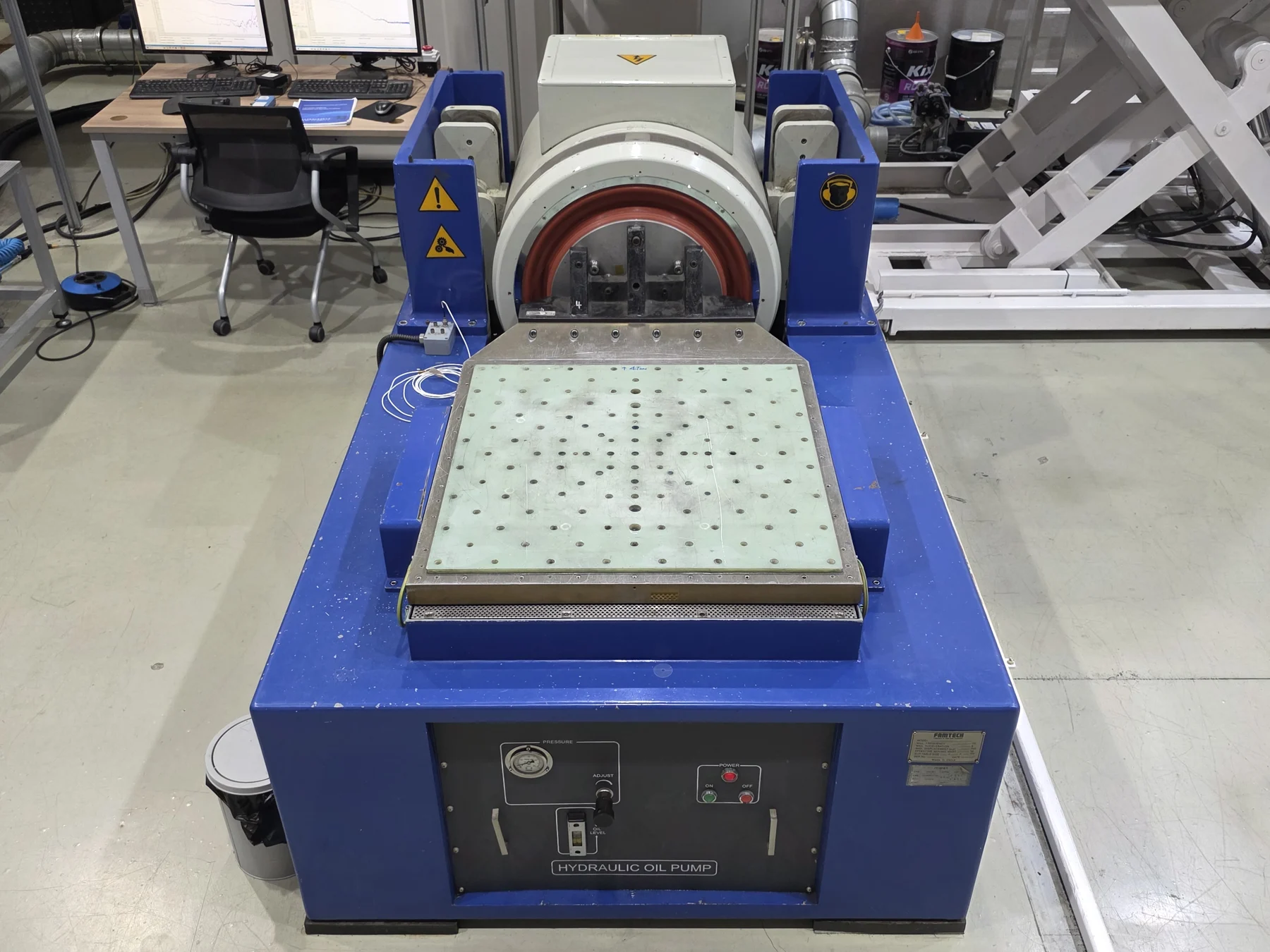

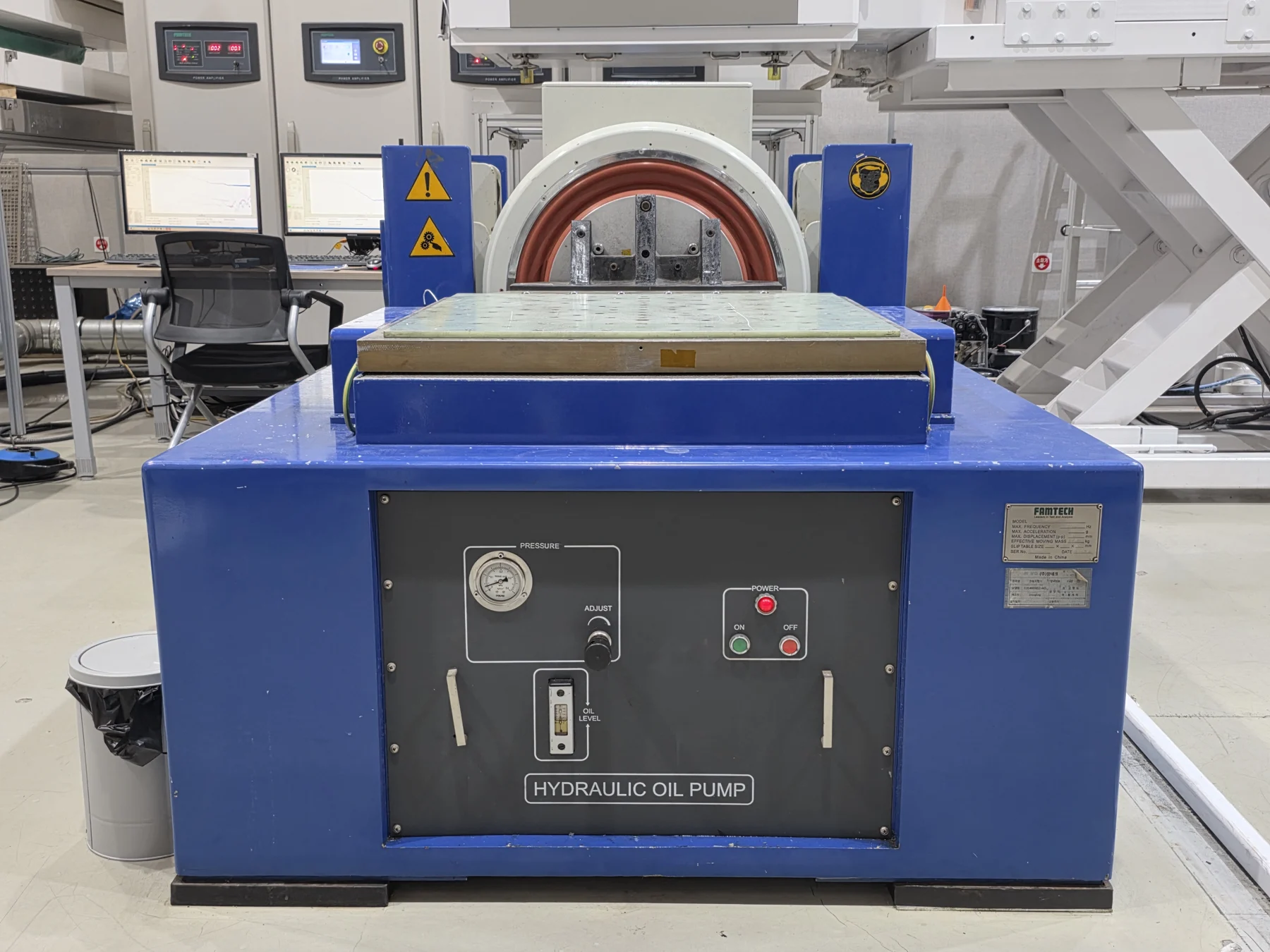

A동 · 1호기
EDS4000LS4-445
- Sine / Random Force
- 4,000 kgf
- Shock Force
- 8,000 kgf
- Frequency Range
- 5–2,000 Hz
- Max Displacement
- 100 mm
- Table Size
- 800 × 800 mm
- Combined Chamber
- 1,000 × 1,000 mm
- Temperature Range
- -50 ~ +150 ℃
- Temperature Rate
- 2 ℃/min (Linear)
EQUIPMENT
보유 장비의 사진과 사양을
한눈에 확인하세요.
최신 장비목록을 기준으로 A동 4대와 B동 2대의 진동·충격 시험설비 사양과 실제 사진을 정리했습니다.
복합환경 진동시험기

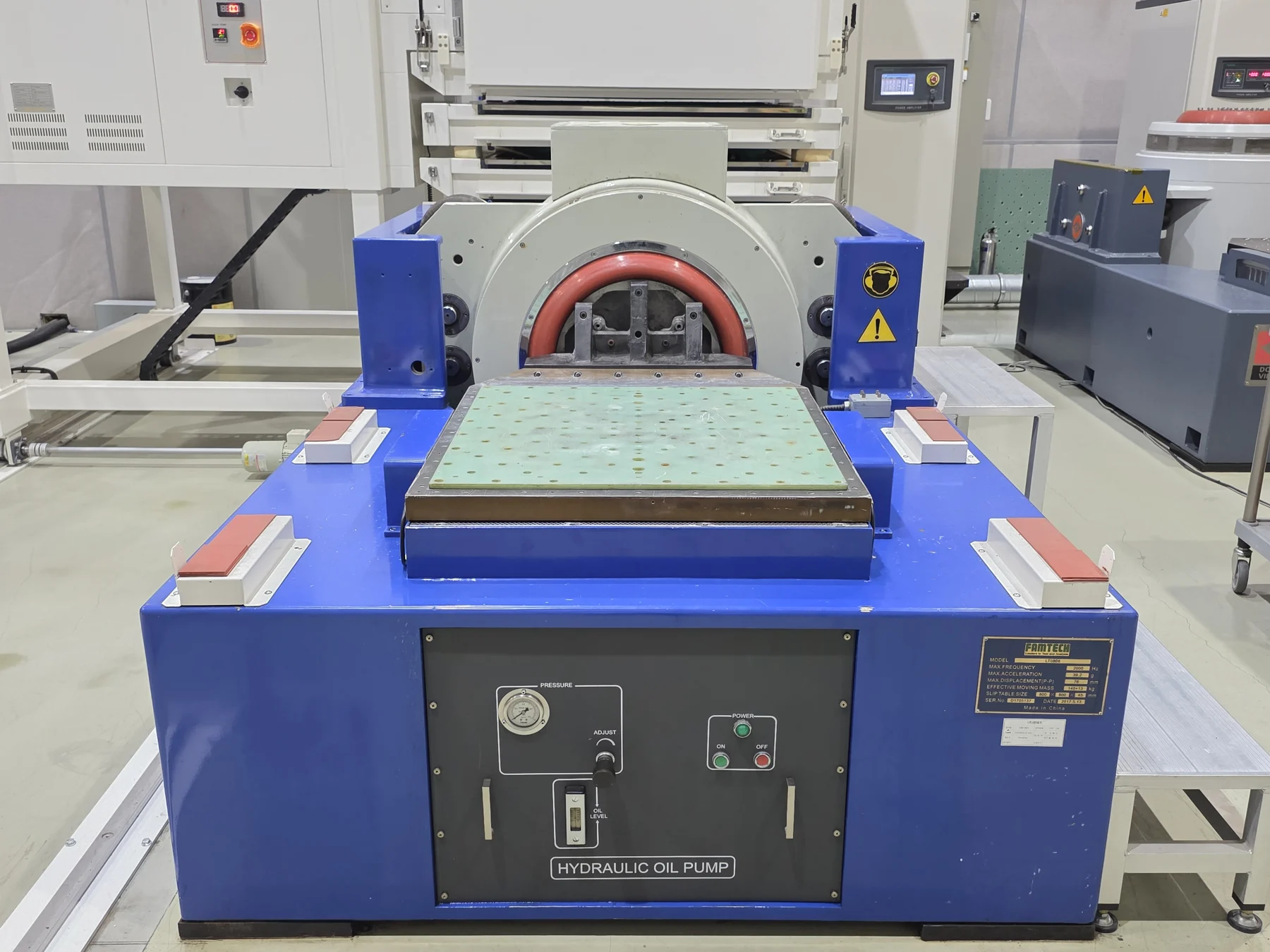

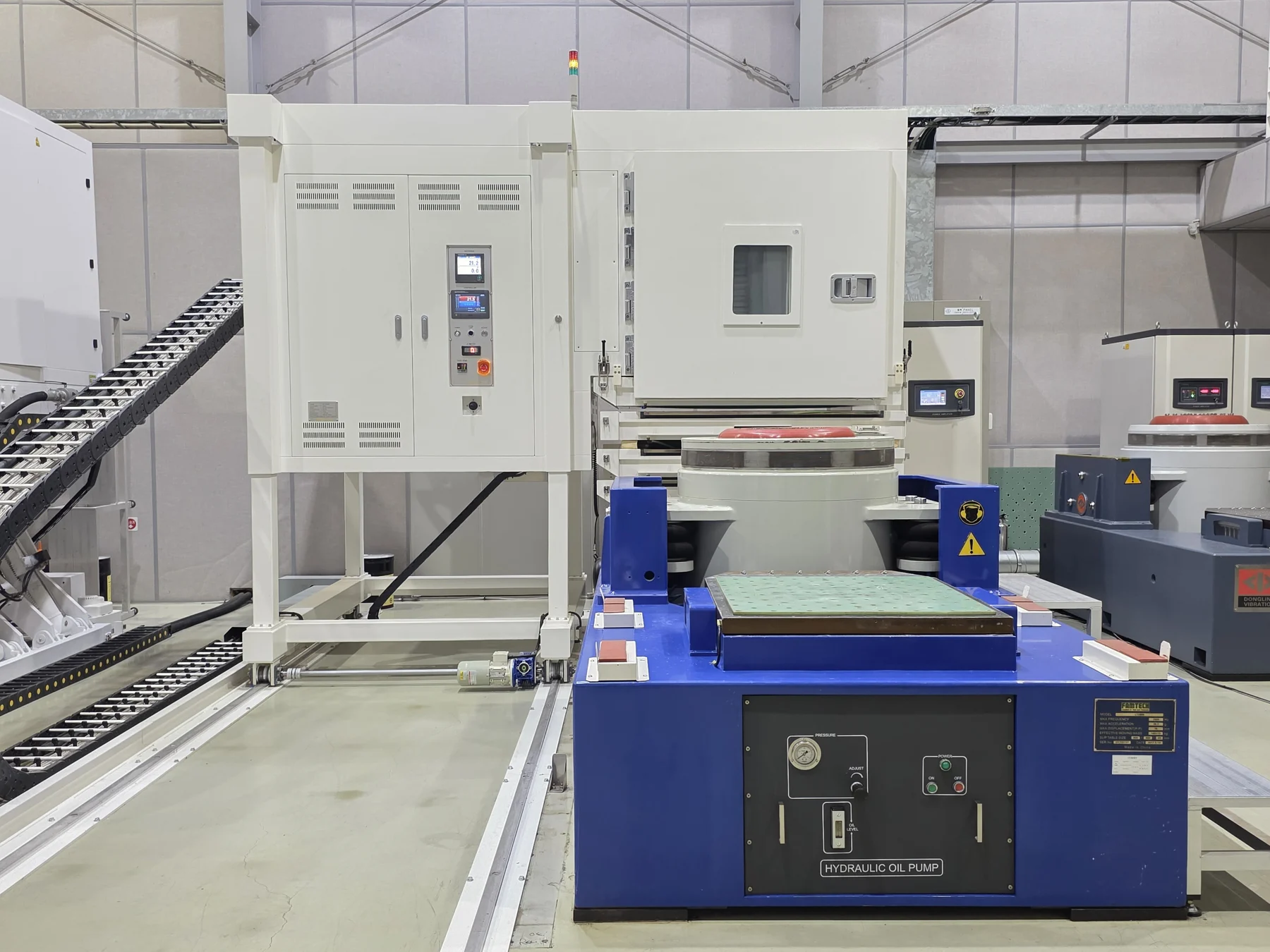

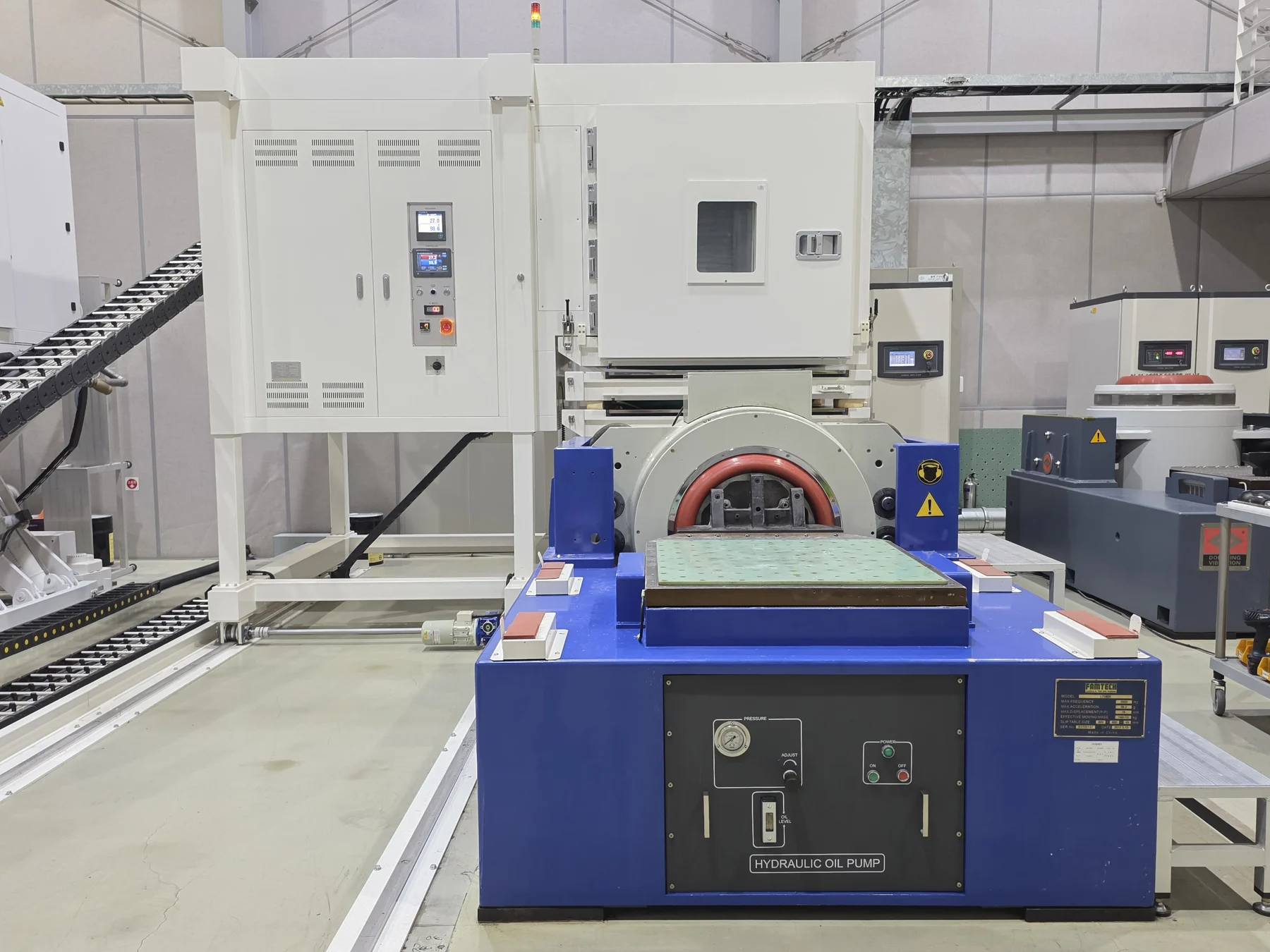

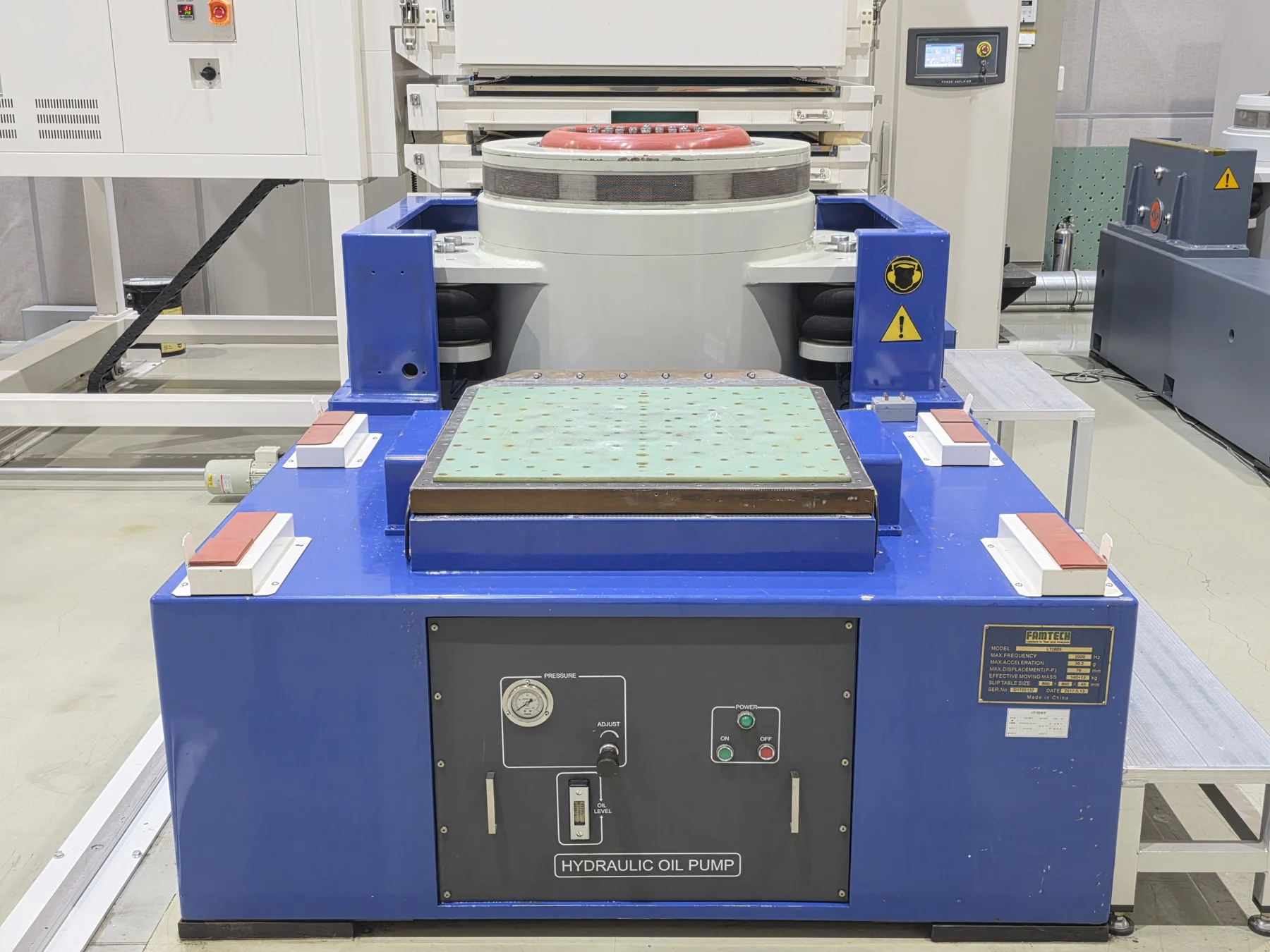

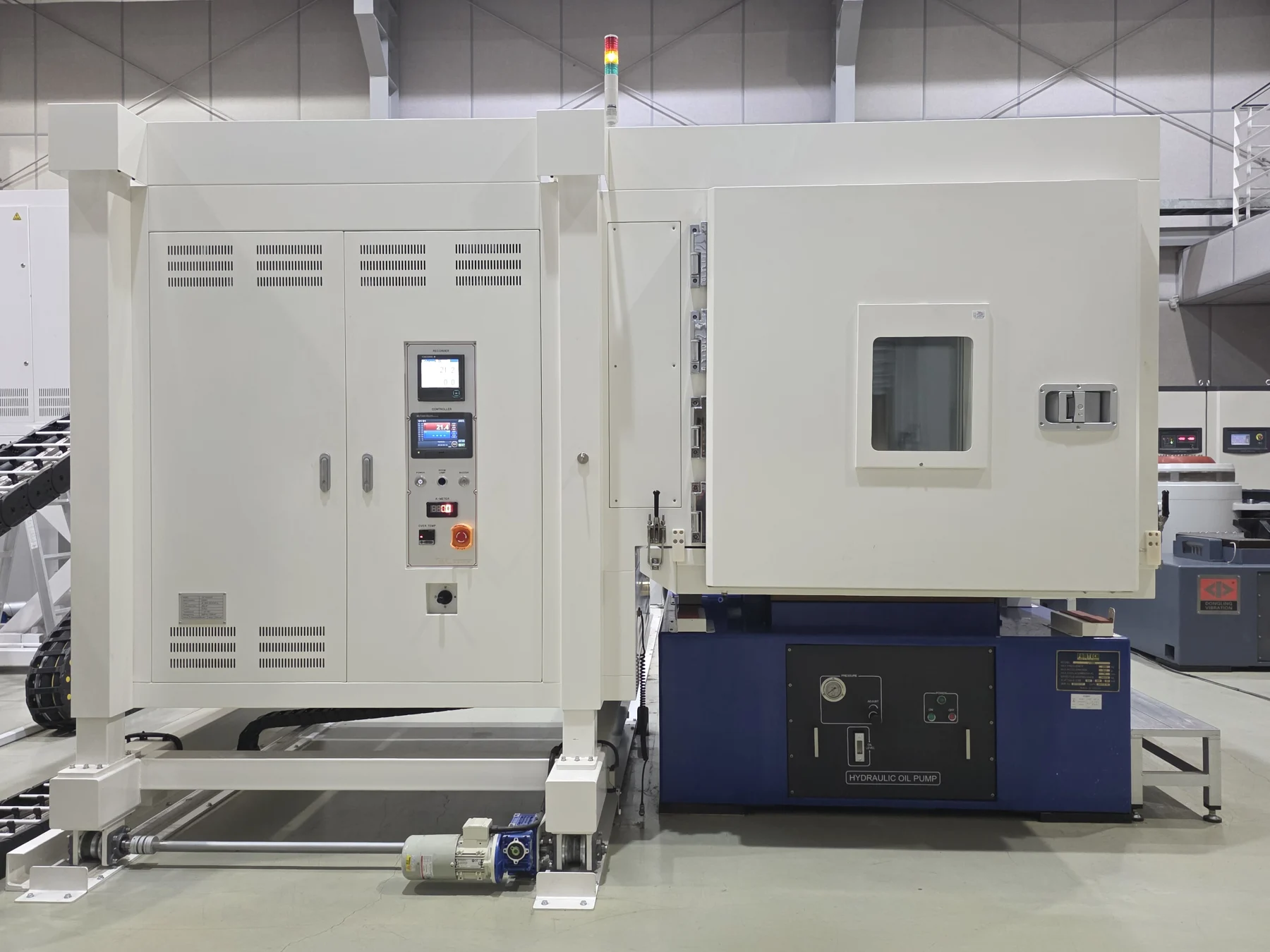

A동 · 2호기
EDS6000LS3-445
- Sine / Random Force
- 6,000 kgf
- Shock Force
- 12,000 kgf
- Frequency Range
- 5–2,000 Hz
- Max Displacement
- 76 mm
- Table Size
- 800 × 800 mm
- Combined Chamber
- 1,000 × 1,000 mm
- Temperature Range
- -40 ~ +150 ℃
- Temperature Rate
- 5 ℃/min (Linear)

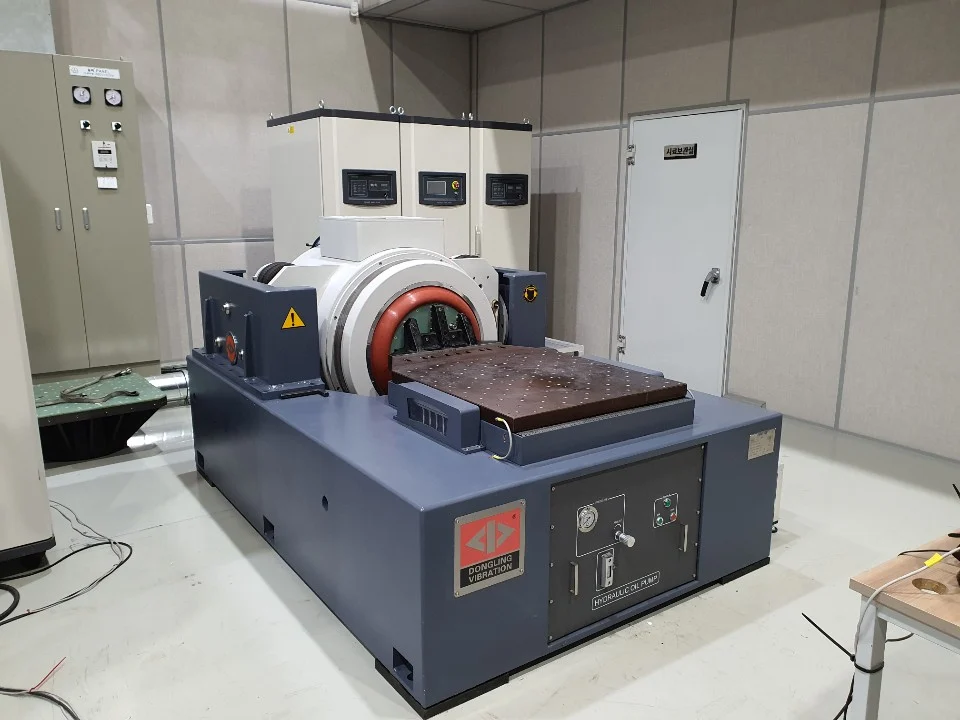

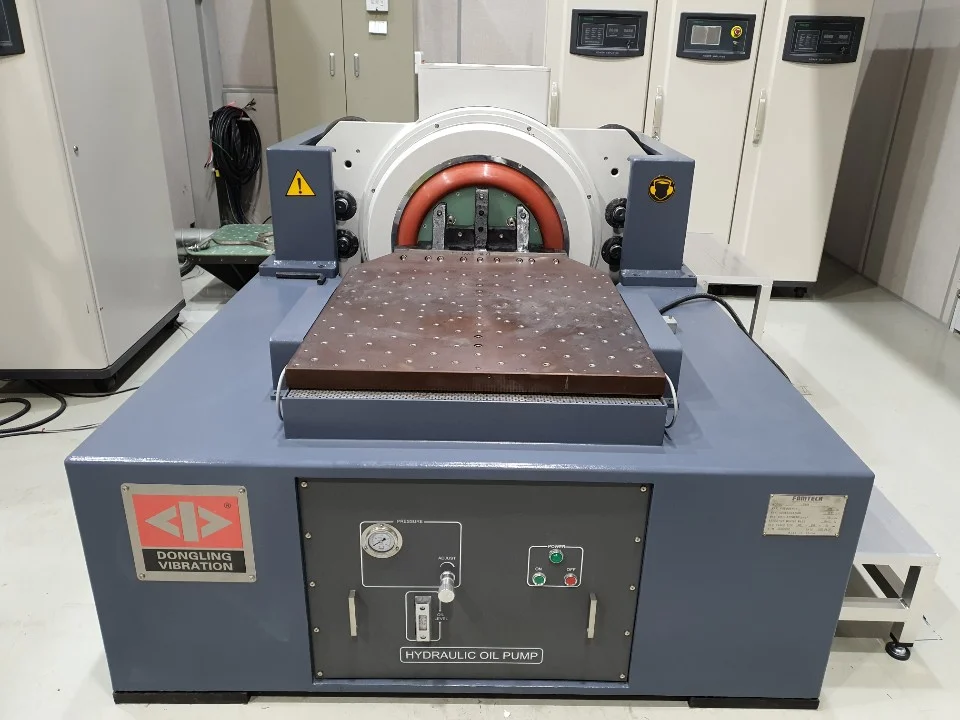

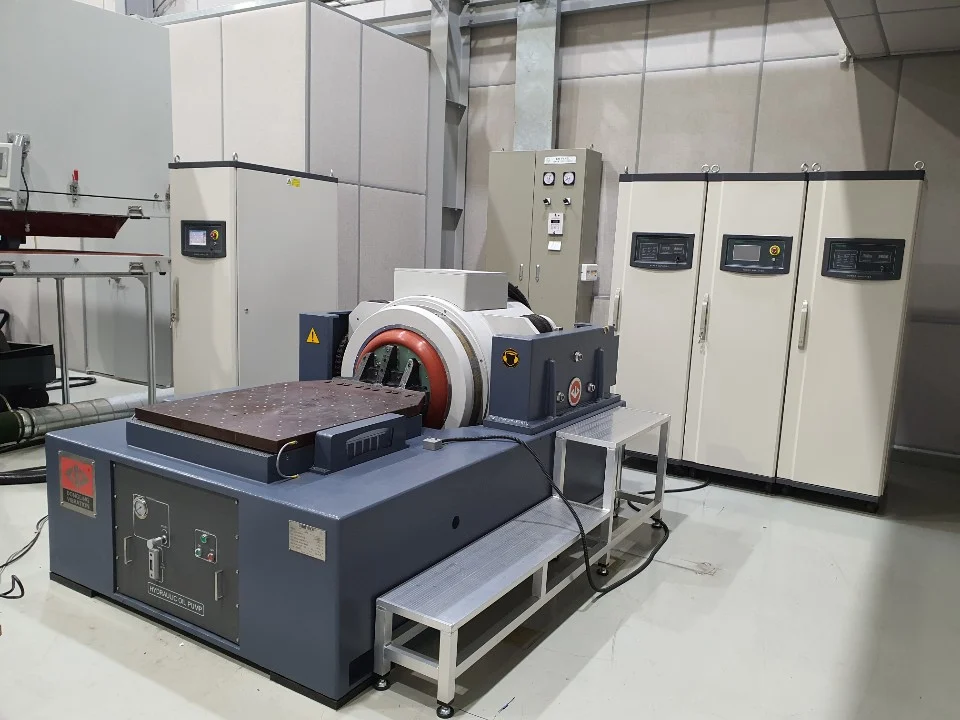

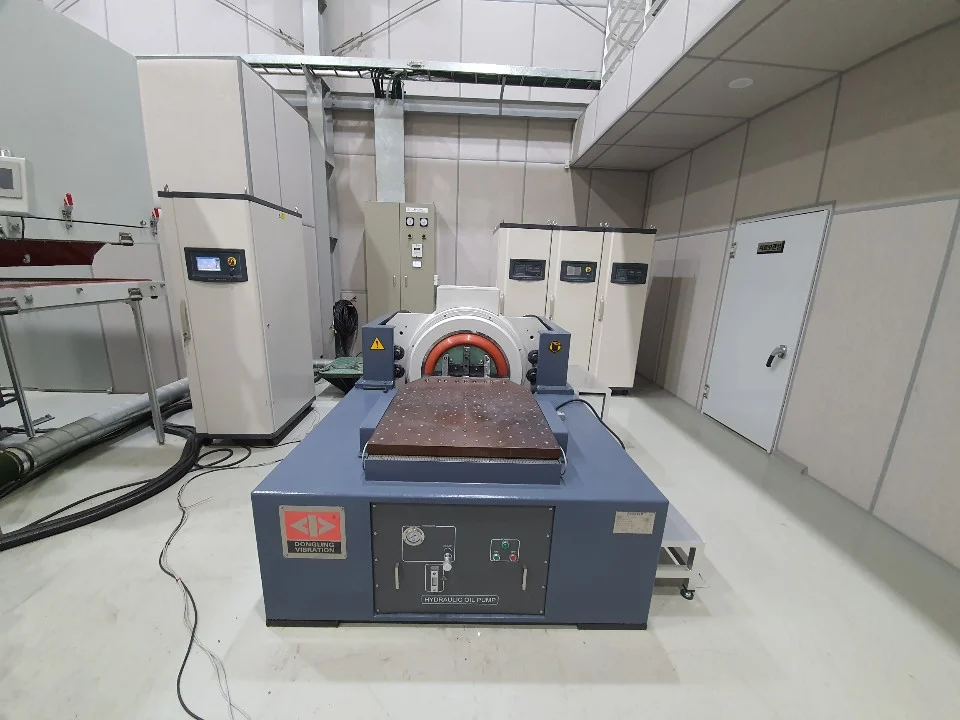

A동 · 3호기
EDS6000LS4-445
- Sine / Random Force
- 6,000 kgf
- Shock Force
- 18,000 kgf
- Frequency Range
- 5–2,000 Hz
- Max Displacement
- 100 mm
- Table Size
- 800 × 800 mm
- Combined Chamber
- -
- Temperature Range
- -
- Temperature Rate
- -

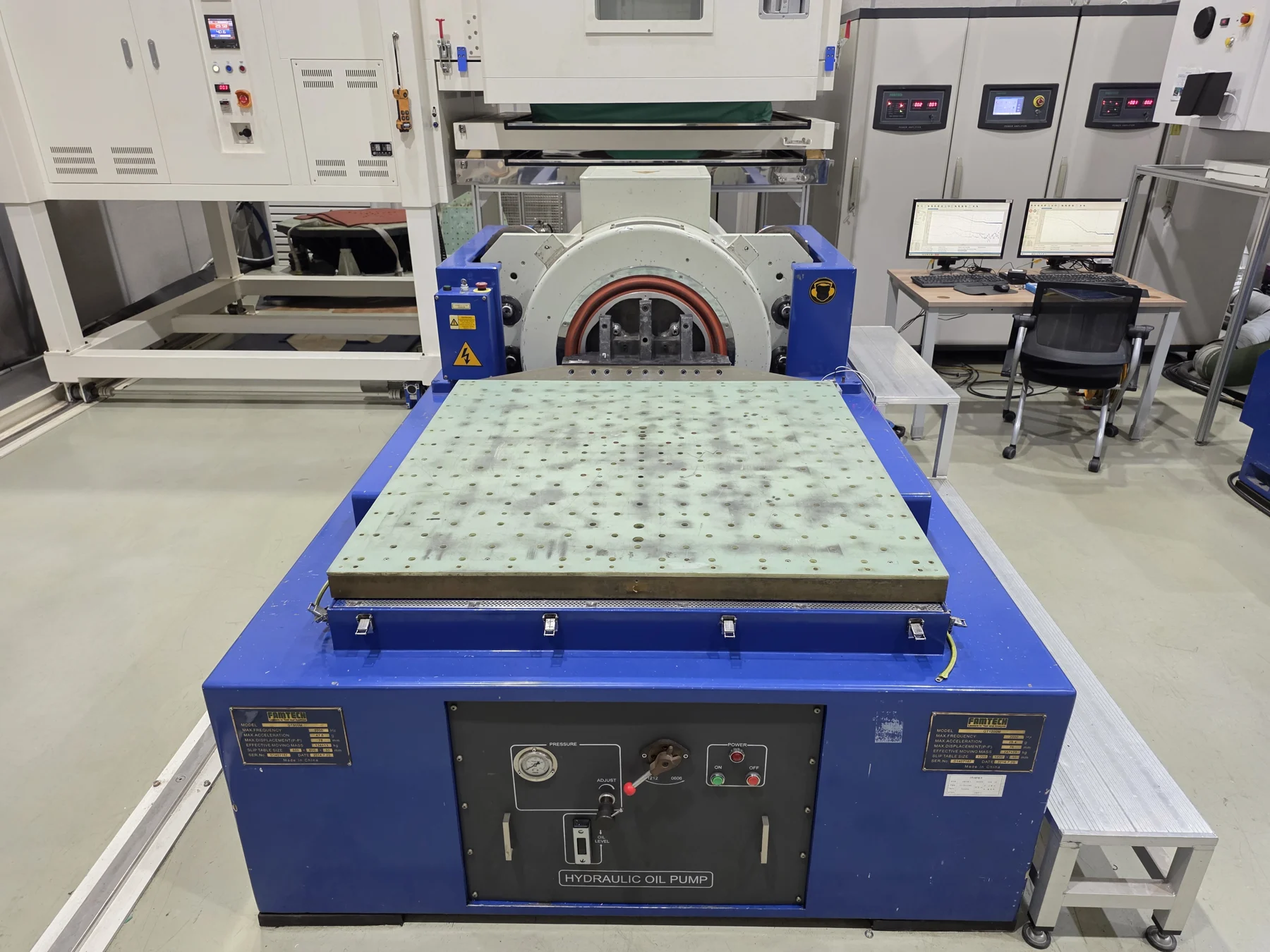

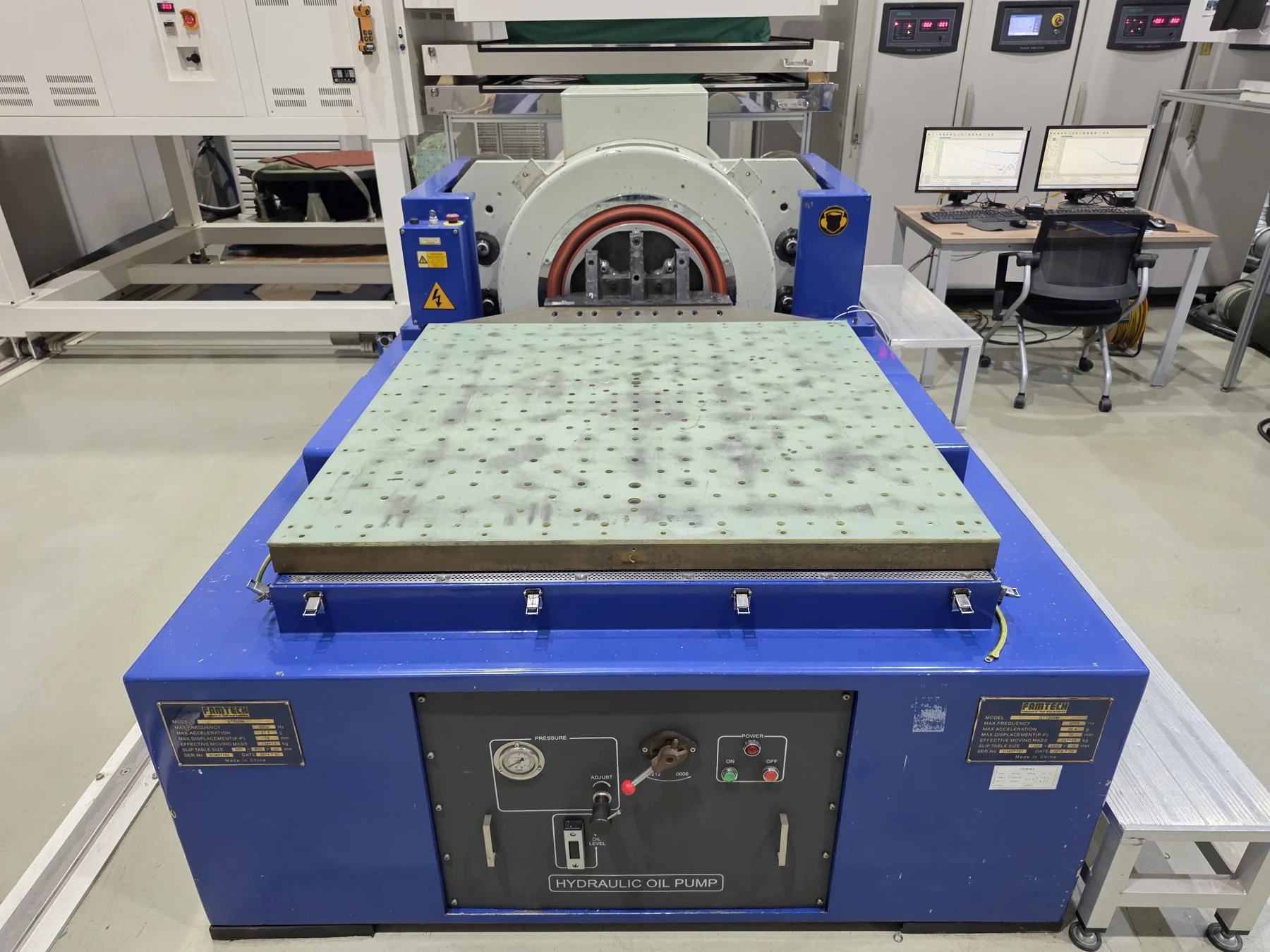

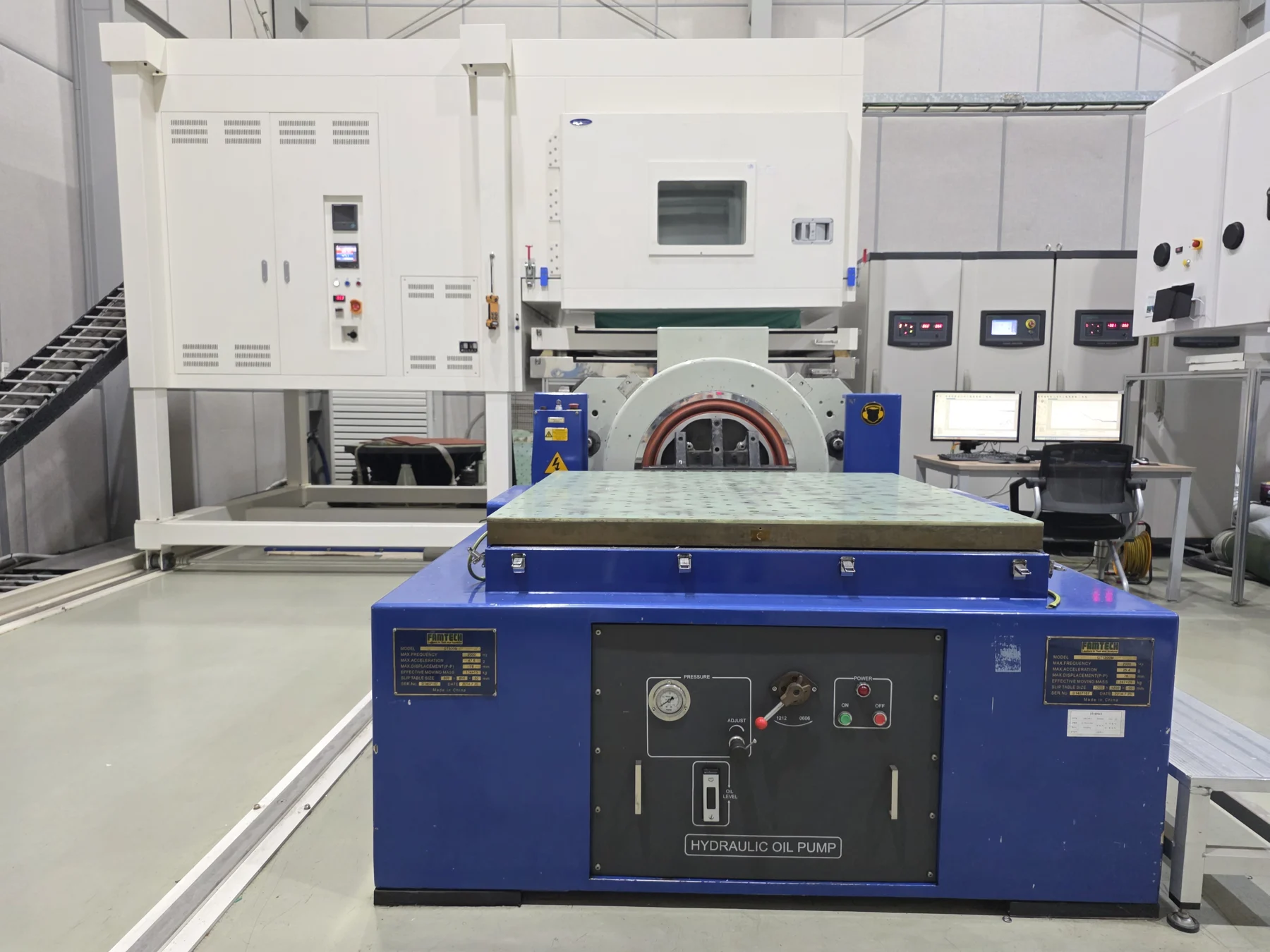

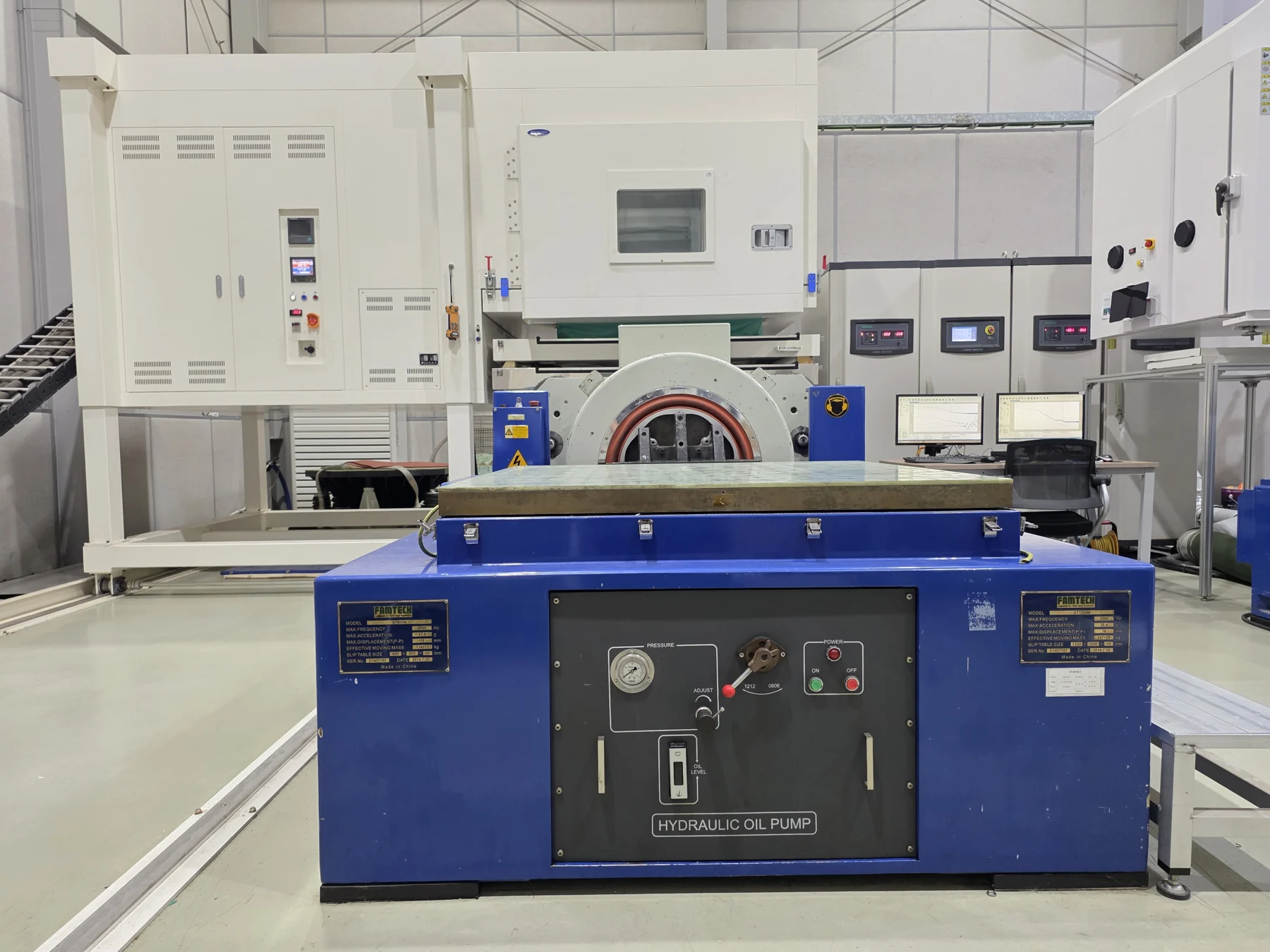

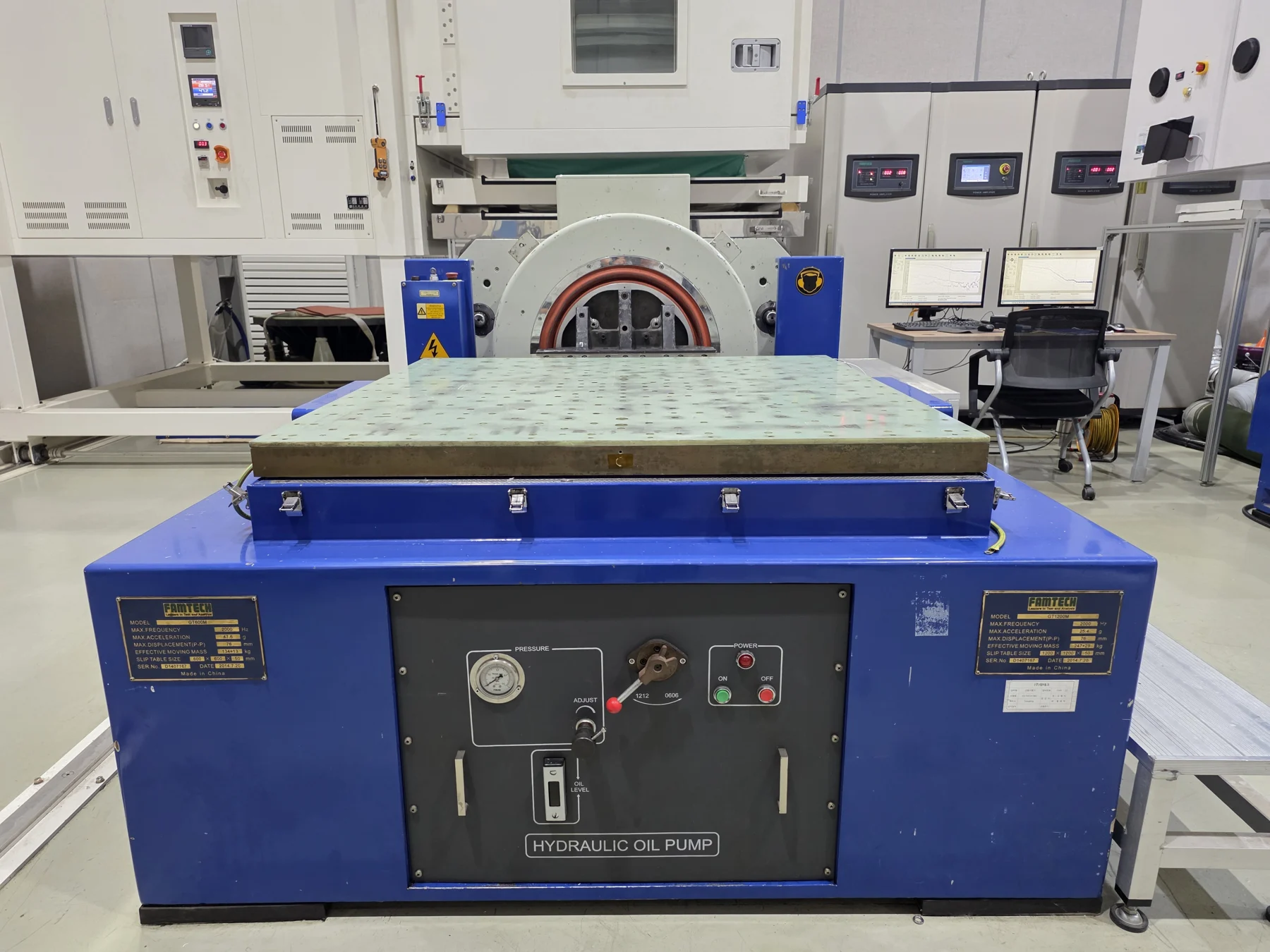

A동 · 4호기
ES-70-LS3-480
- Sine / Random Force
- 7,000 kgf
- Shock Force
- 21,000 kgf
- Frequency Range
- 5–2,000 Hz
- Max Displacement
- 76 mm
- Table Size
- 600 × 600 / 1,200 × 1,200 mm
- Combined Chamber
- 1,500 × 1,500 mm
- Temperature Range
- -40 ~ +150 ℃
- Temperature Rate
- 5 ℃/min (Linear)
.webp)
.webp)

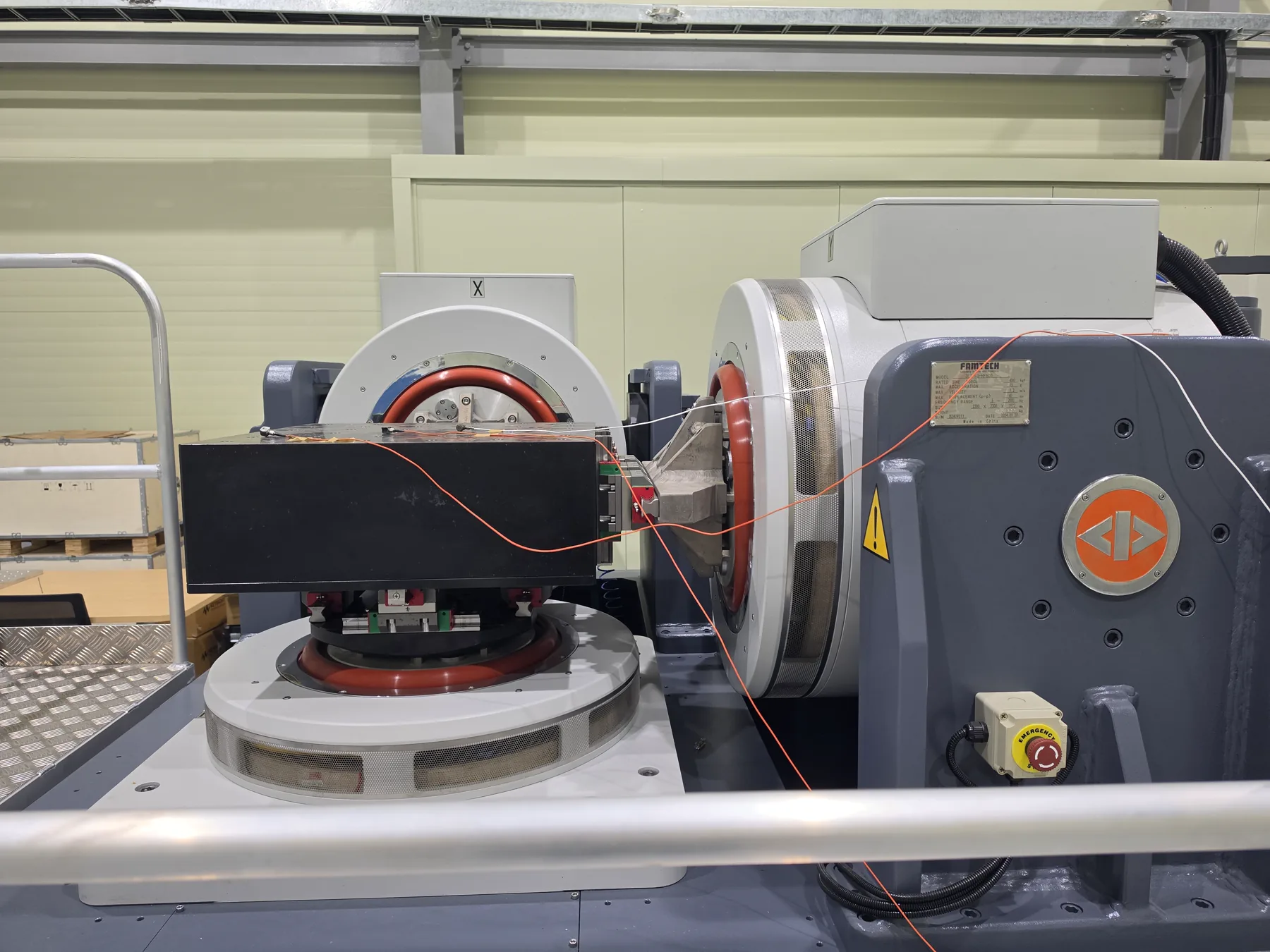

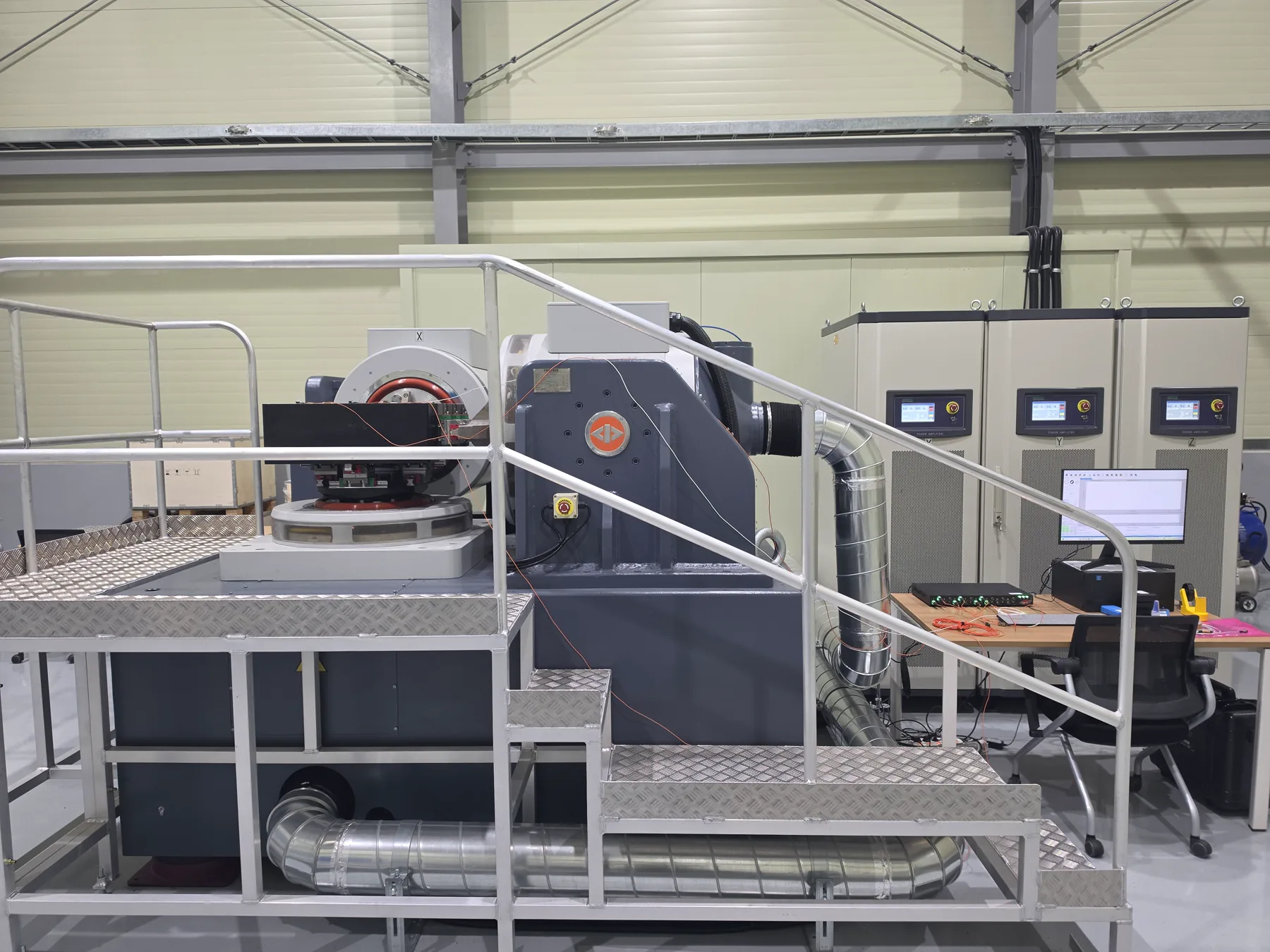

B동
3ES-40-HF600
- Sine / Random Force
- 4,000 kgf
- Shock Force
- 8,000 kgf
- Frequency Range
- 5–2,000 Hz
- Max Displacement
- 40 mm
- Max Velocity
- 1.2 m/s
- Max Acceleration
- 15 g
- Table Size
- 600 × 600 mm
.webp)
.webp)

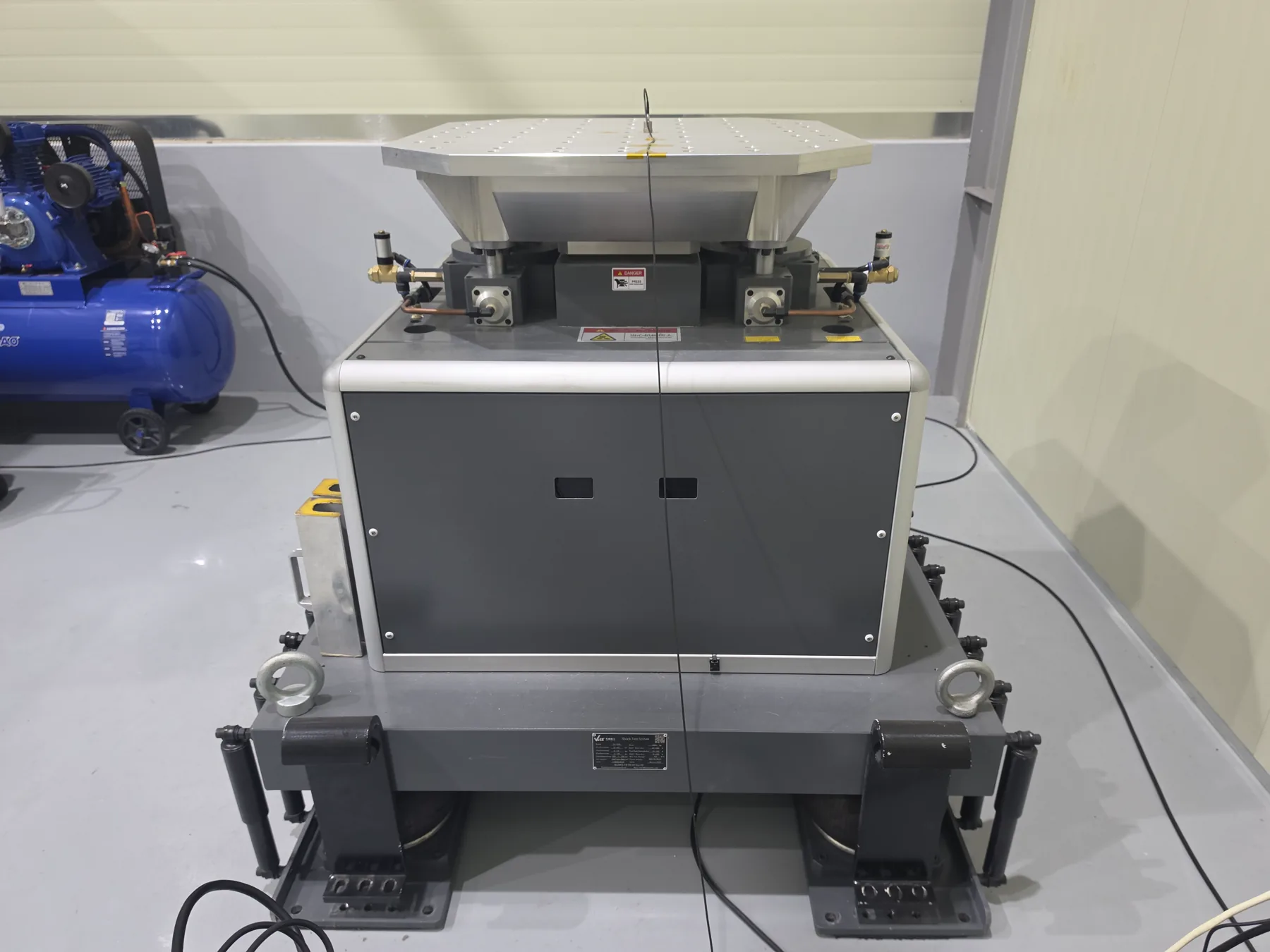

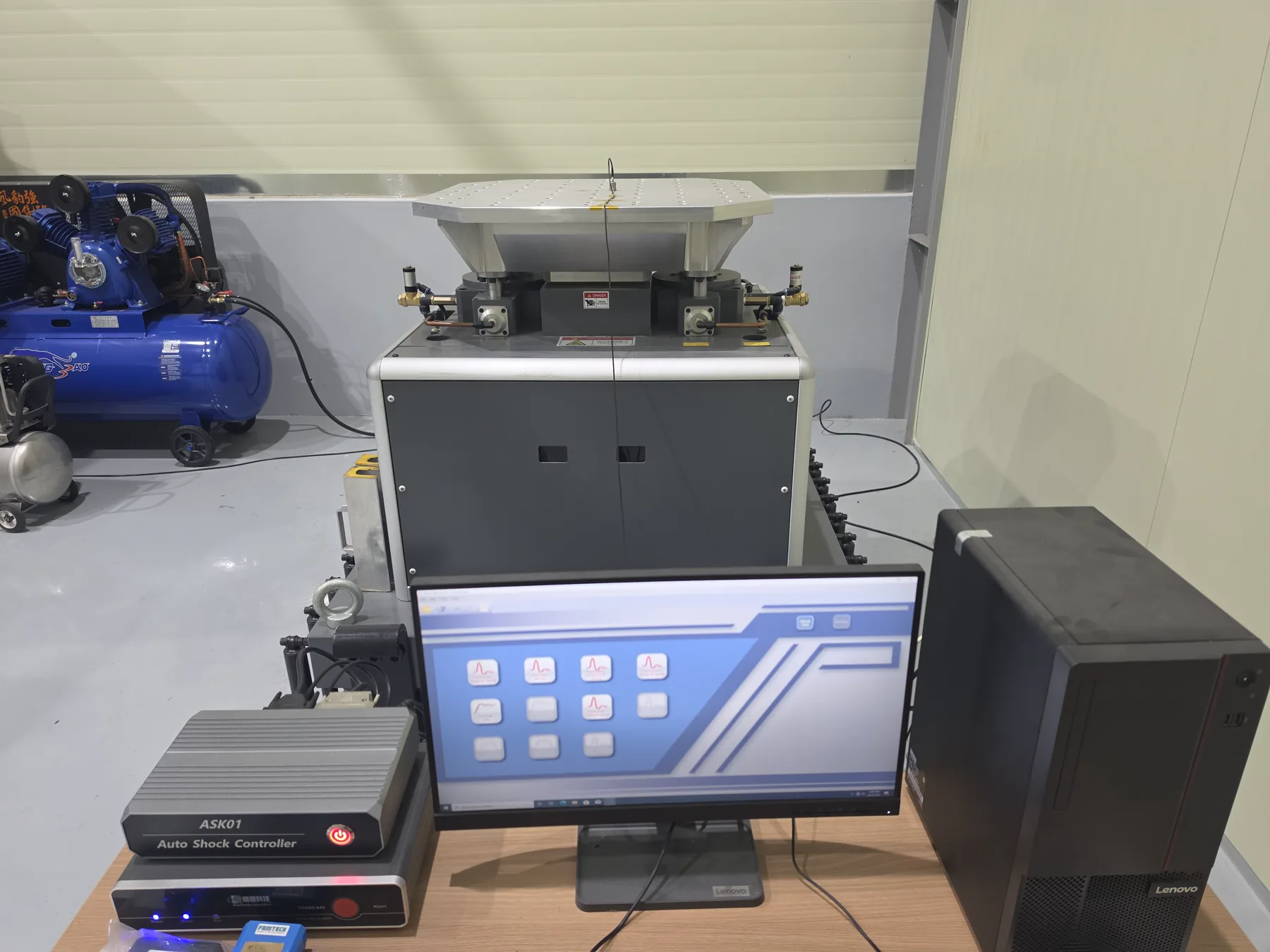

B동
SA800
- Maximum Load
- 500 kg
- Table Size
- 800 × 800 mm
- Shock Acceleration
- 10–500 g
- Shock Duration
- 2–40 ms
- Bump Acceleration
- 5–150 g
- Bump Duration
- 3–40 ms
- Max Velocity Change
- 8.2 m/s
- Shock Waveform
- Half-Sine / Post Peak Sawtooth
- Direction
- Vertical
